FORMUFIT 1/2" Structural Grade PVC pipe is a top-of-the-line PVC pipe. Made from UV resistant Furniture Grade PVC resins, it will resist and withstand harsh sunlight and fluorescent lighting. 1/2" PVC pipe is our smallest size, and is perfect for prototyping or for school projects, such as science fairs.
All FORMUFIT 1/2" PVC Pipe is Schedule 40, which has an outside diameter of 13/16" (0.840") with an average inside diameter of 0.622 inches.
1/2 in. Furniture Grade PVC Pipe
The Premier PVC Pipe
FORMUFIT 1/2" Furniture Grade PVC pipe is dimensionally identical to standard 1/2" Schedule 40 plumbing-grade PVC pipe which is available from most home centers or hardware stores, but designed to last much longer and outperform standard plumbing pipe.
All FORMUFIT PVC pipe is UV resistant. This keeps the pipe from becoming yellow, dull and brittle. The pipe is designed for outdoor and fluorescent lighting applications and a lifetime of use.
1/2" Furniture PVC pipe is ideal for smaller structural applications, where strength is important, but size is must be minute. 1/2" Furniture Grade PVC pipe has a far different appearance than its plumbing grade counterpart pipe, as it has a shiny, bright surface that is free of printing or manufacturer’s markings. Excellent for crafts, project stands and science projects.
Furniture PVC pipe has the same outside and inside diameters as standard Schedule 40 PVC plumbing pipe. Since it uses the same sizing system as Schedule 40 PVC it is 100% compatible with standard and furniture grade PVC fittings. PVC uses a nominal sizing system, which means ‘in name only’ so all of our 1/2 in. Size PVC pipe fits with our 1/2 in. Size PVC fittings.

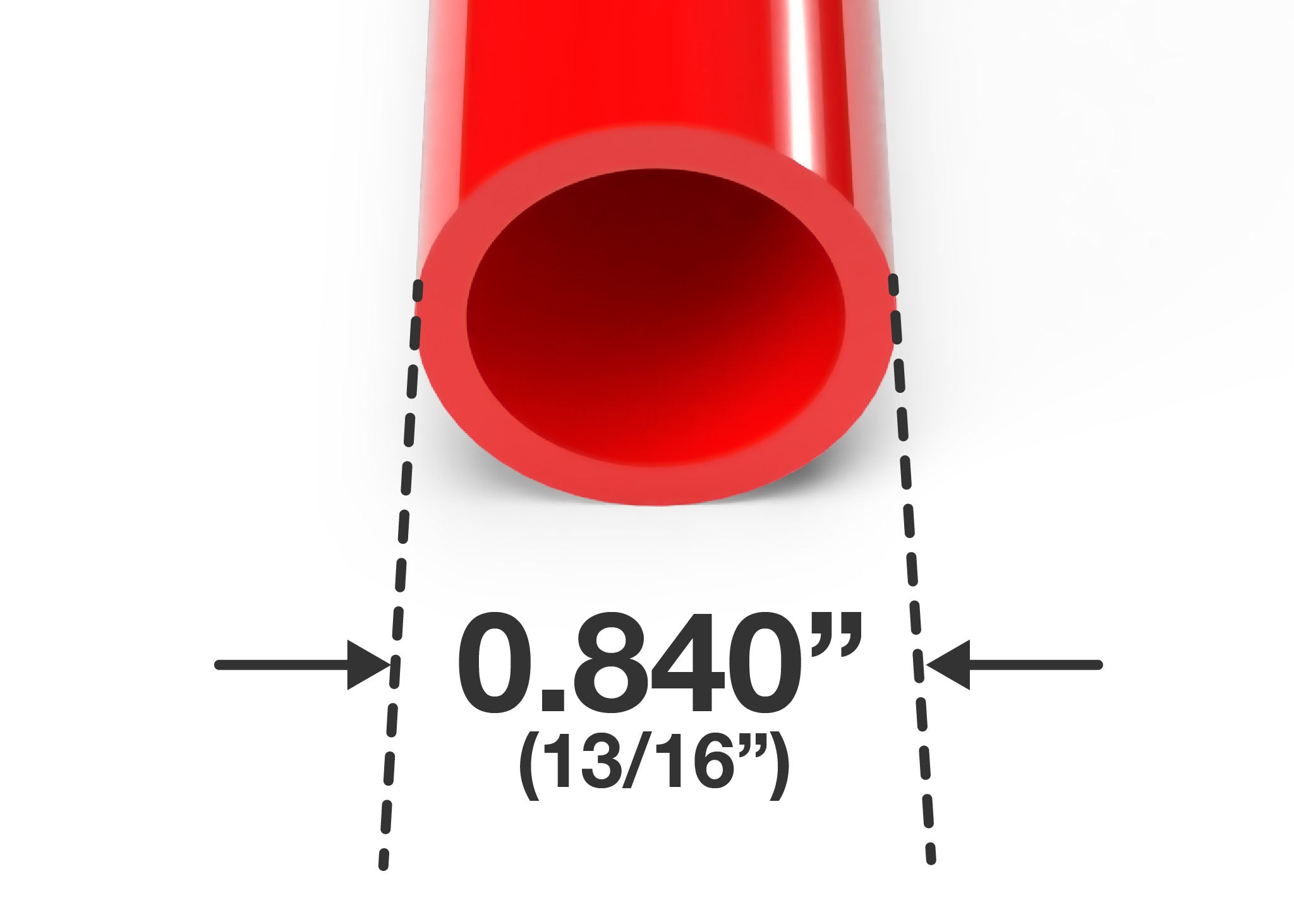

1/2" Schedule 40 PVC Pipe Dimensions
|Actual Outside Diameter||13/16 (0.840")|
|Average* Inside Diameter||0.622|
|Average* Wall Thickness||0.109|
*Averages are provided as the extrusion process contains variations, and some wall thicknesses and inside diameters may not be consistent, from lot to lot.
Available in Color & Clear
FORMUFIT offers our Furniture Pipe in eight (8) different colors in the 1/2” Size. Stocked colors include: White, Black, Red, Orange, Yellow, Green, Blue and Purple. We also offer this size PVC pipe in a Clear UV option for clear projects and solutions.
Furniture Grade PVC pipe is not meant for plumbing or pressurized use. It is only manufactured for non-standard PVC uses, and are not NSF rated for commercial or residential plumbing applications.
