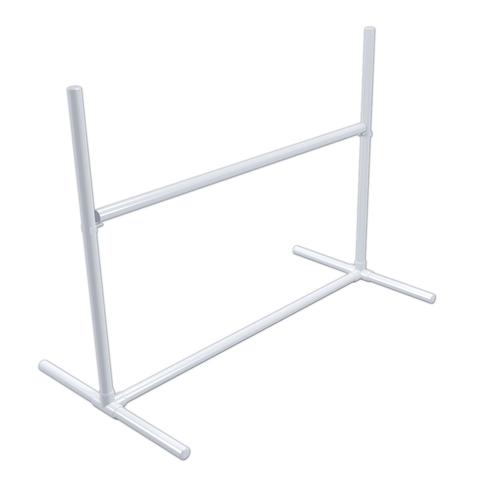

PVC Dog Agility Hurdle Jump

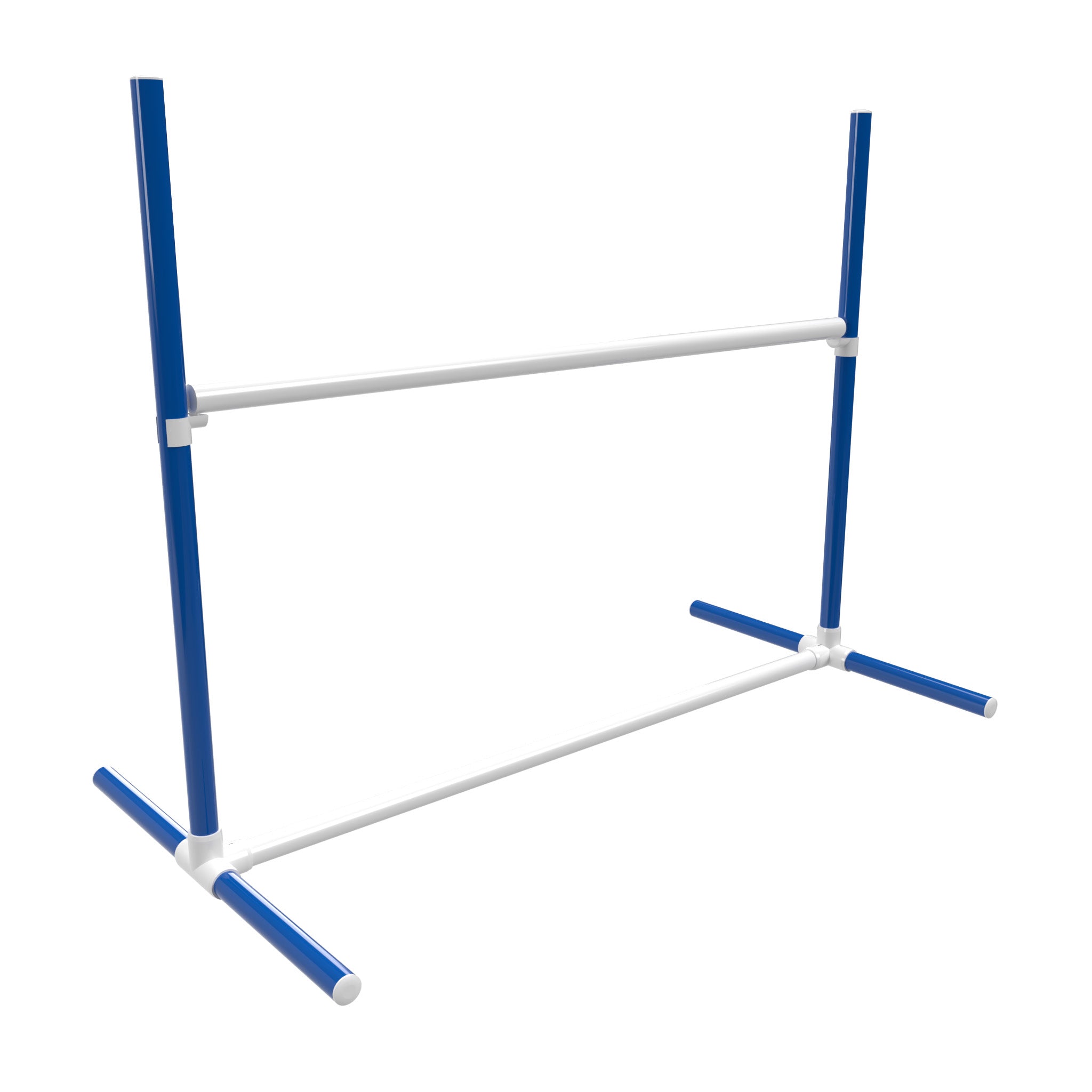

dog agility hurdle jump pvc plan

Materials List

F001IDC 1 in. Internal Dome Cap 8
F0014WT 1 in. 4-Way PVC Tee 2
F001JMP 1 in. PVC Jump Cup 2
Pipe Required 1 in. Sch 40 PVC Pipe 20 ft.

*Please note that our 1" PVC Size Jump Cup has been discontinued and is no longer available, however there are other online retailers that offer 1" Jump Cups.

PVC Project Plan Description

This Dog Agility Hurdle Jump is light, durable and easy to assemble and use. Height adjustments are easy and quick using standard 1" jump cups.

Project Specifications:

  • Meets AKC and USDAA requirements for agility jump obstacles.
  • 45" span between poles.
  • Fully adjustable hurdle pole height using snap-on Jump Cups, up to 30" in height.
  • Smooth ends to avoid injury to your pet.

Download this PVC Plan

Download a step-by-step PDF file of this PVC plan to your computer or device.

Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
