PVC Misting Station

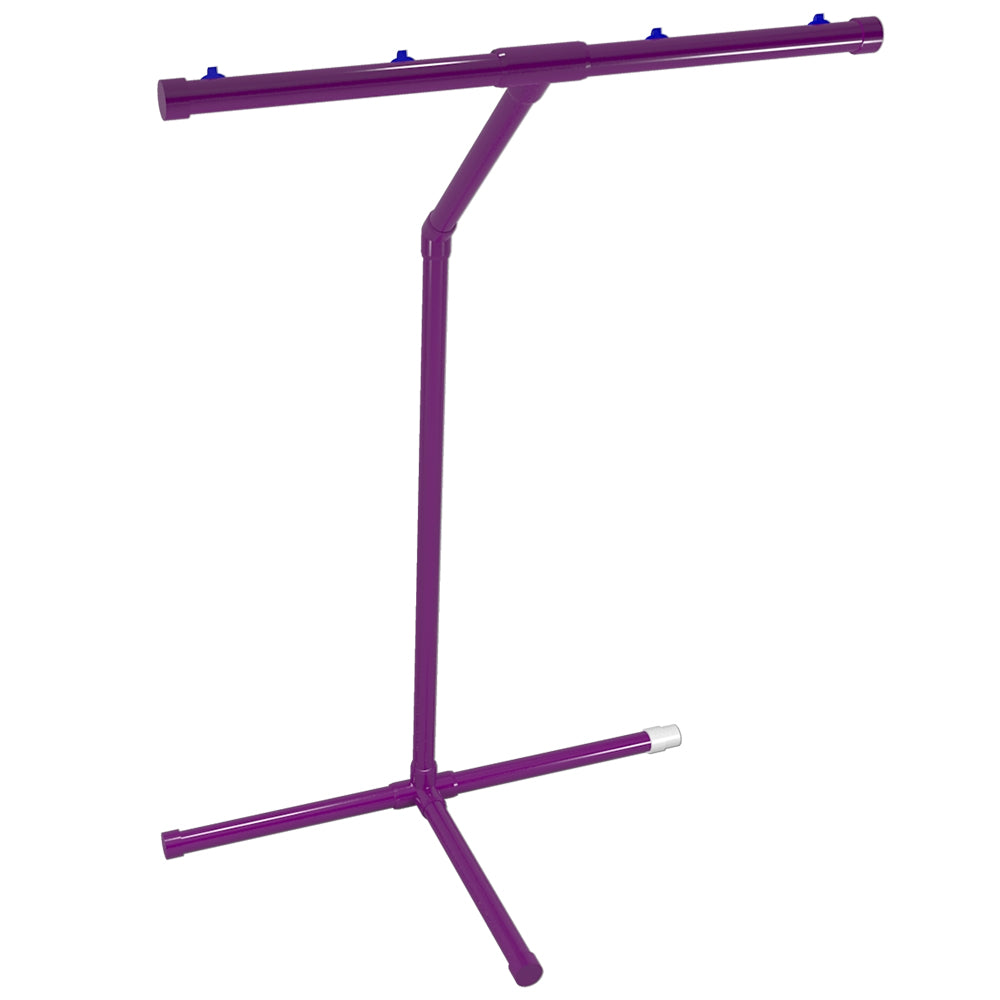

PVC water misting station

Materials List

PART DESCRIPTION  QTY.
F001EEC 1 in. External PVC End Cap 4
F001TEE 1 in. Standard PVC Tee 1
F0014WT 1 in. 4-Way PVC Tee 1
F00145E 1 in. 45 Degree PVC Elbow 1
Pipe Needed 1 in. Schedule 40 PVC Pipe 10 ft.
External PVC Hose Adapter 1
External Irrigation Misting Jets 4

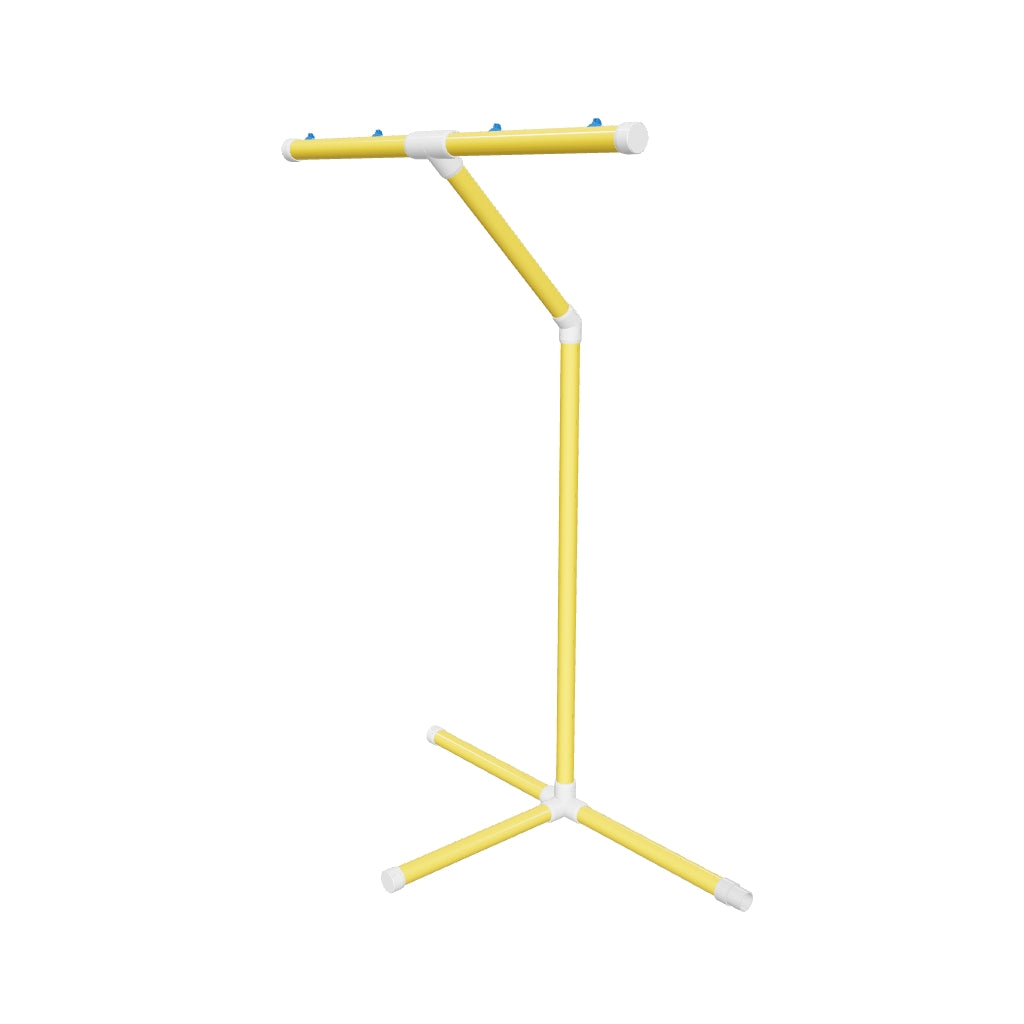

PVC Project Plan Description

Cool off without getting soaked! This PVC mister plan shows you how to build a PVC water mister for your deck, porch or for use with kids to make a "kid-wash" for bikes and trikes.

Project Specifications:

  • Four mister jets cover a large area
  • Stands 3-feet high, perfect for behind a patio couch or chair.
  • Uses standard PVC pipe hose adapters and mister jets, available from the hardware store
  • Durable and weatherproof
  • Dimensions: 39"H x 26"W x 14"D

Download this PVC Plan

Download the easy Exploded PDF file of this PVC plan to your computer or device.


Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
