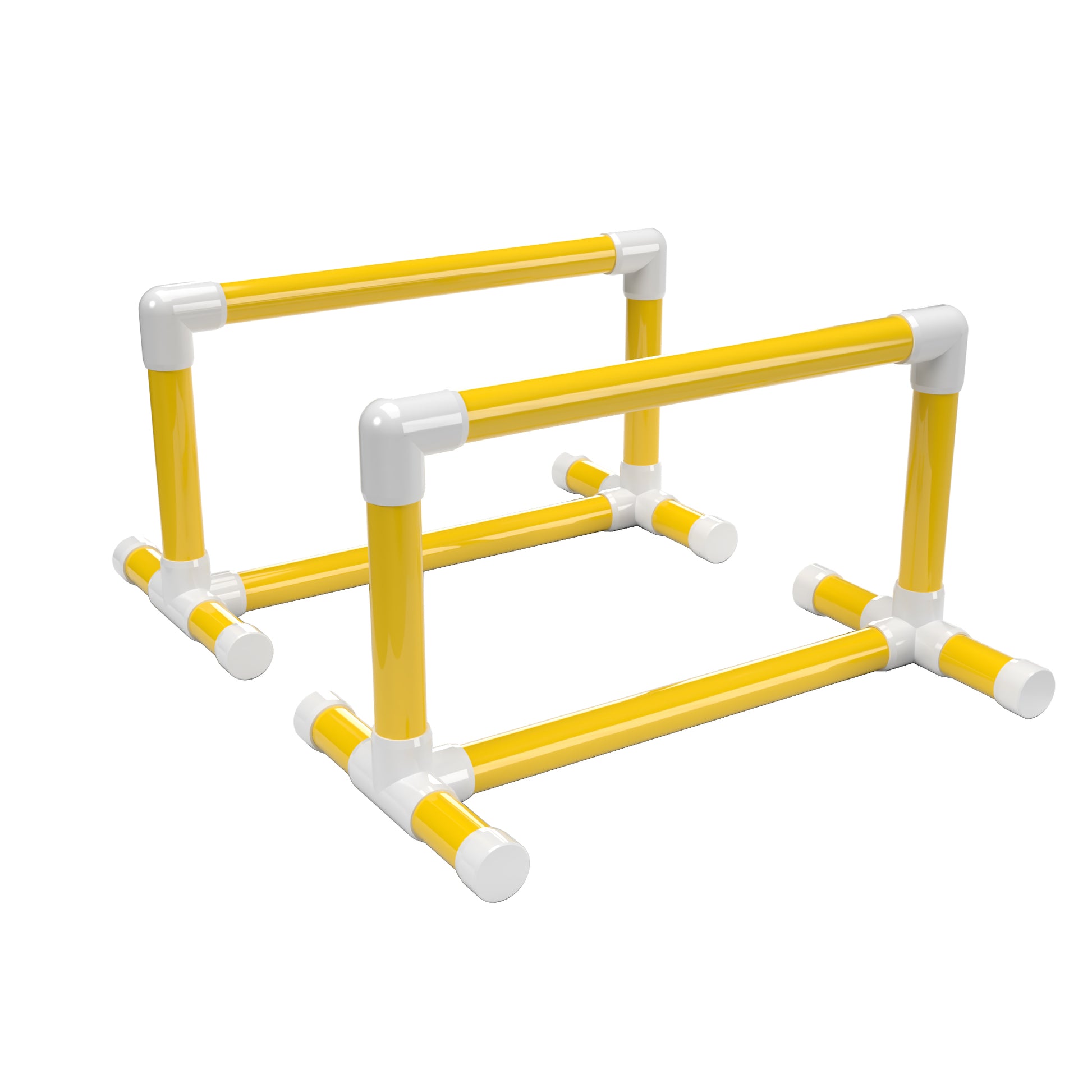

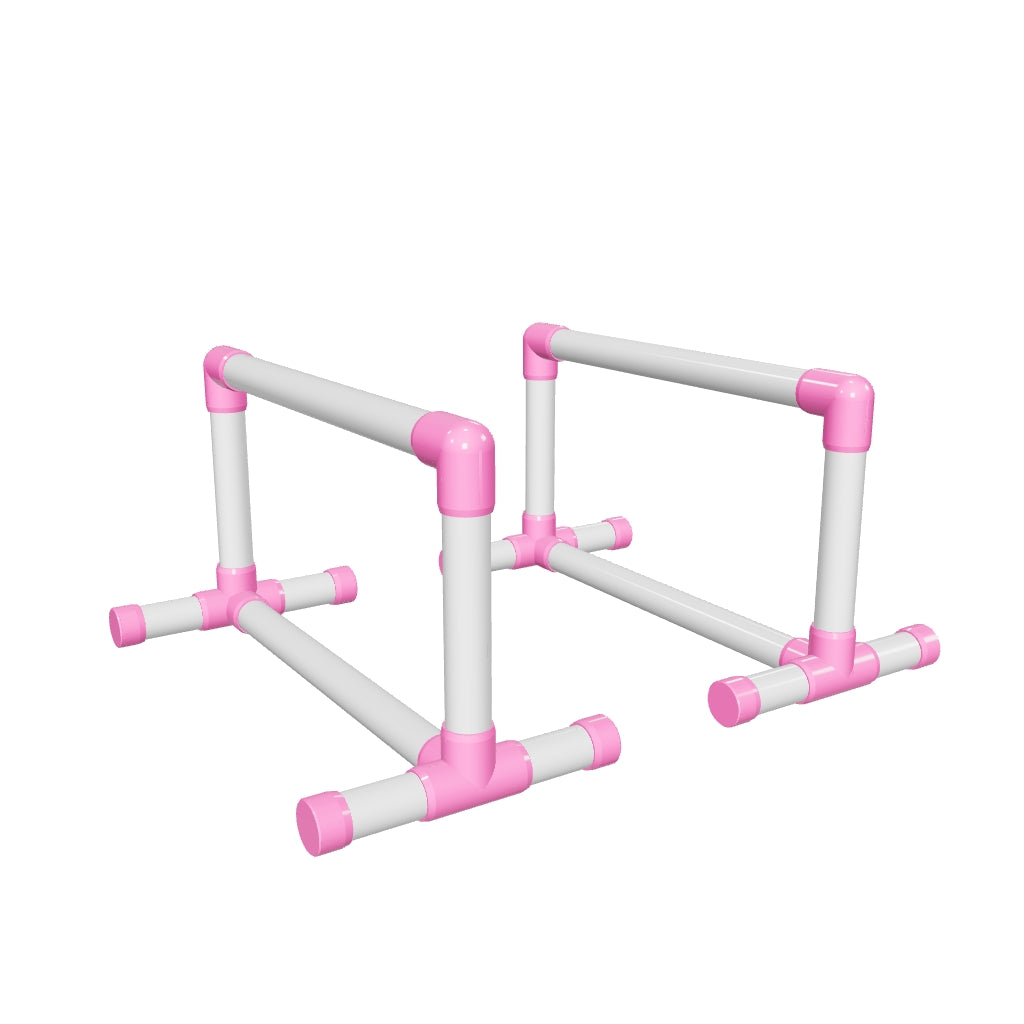

PVC Parallettes

Large PVC Dog Bed

Materials List

PART DESCRIPTION  QTY.
F112EEC-WH 1-1/2 in. External End Cap 8
F11290E-WH 1-1/2 in. 90 Deg. PVC Elbow 4
F1124WT-WH 1-1/2 in. 4-Way PVC Tee 4
Pipe Required 1-1/2 in. Sch 40 PVC Pipe 12 ft.

PVC Project Plan Description

Parallettes simulate the use of full-size parallel bars for gymnasts, but can be  beneficial to those outside gymnastics.  Similar to push-up bars or dips bars, parallettes are larger in size and can provide additional weight and support.

Project Specifications:

  • 15" clearance from the floor or ground
  • Plan utilizes heavy duty 1-1/2" Size PVC pipe and fittings
  • Durable, lightweight and weather resistant, can be used indoors or out
  • Measures 24L" x 14W" x 15"H when fully constructed.

Download this PVC Plan

Download a step-by-step PDF file of this PVC plan to your computer or device.


Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
