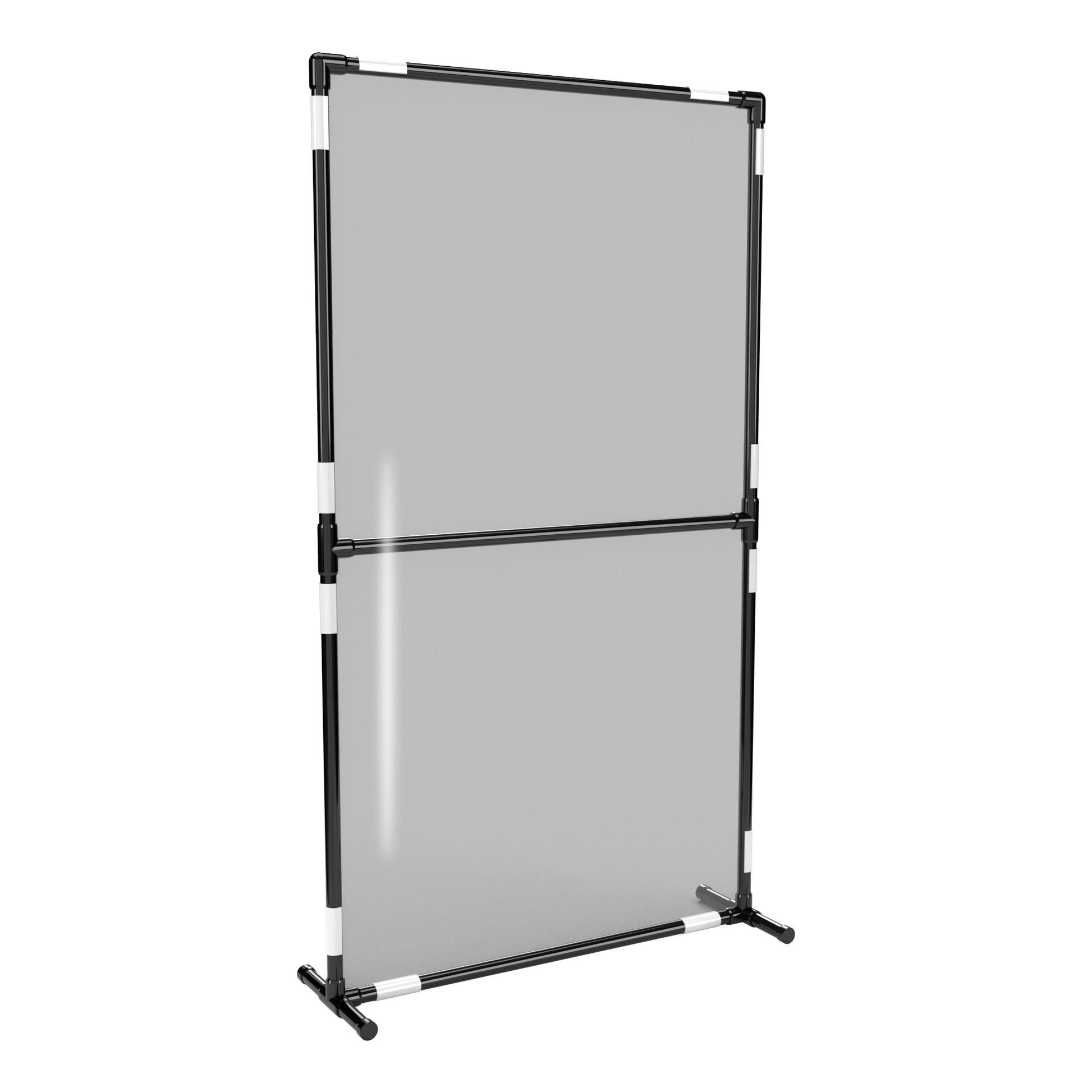

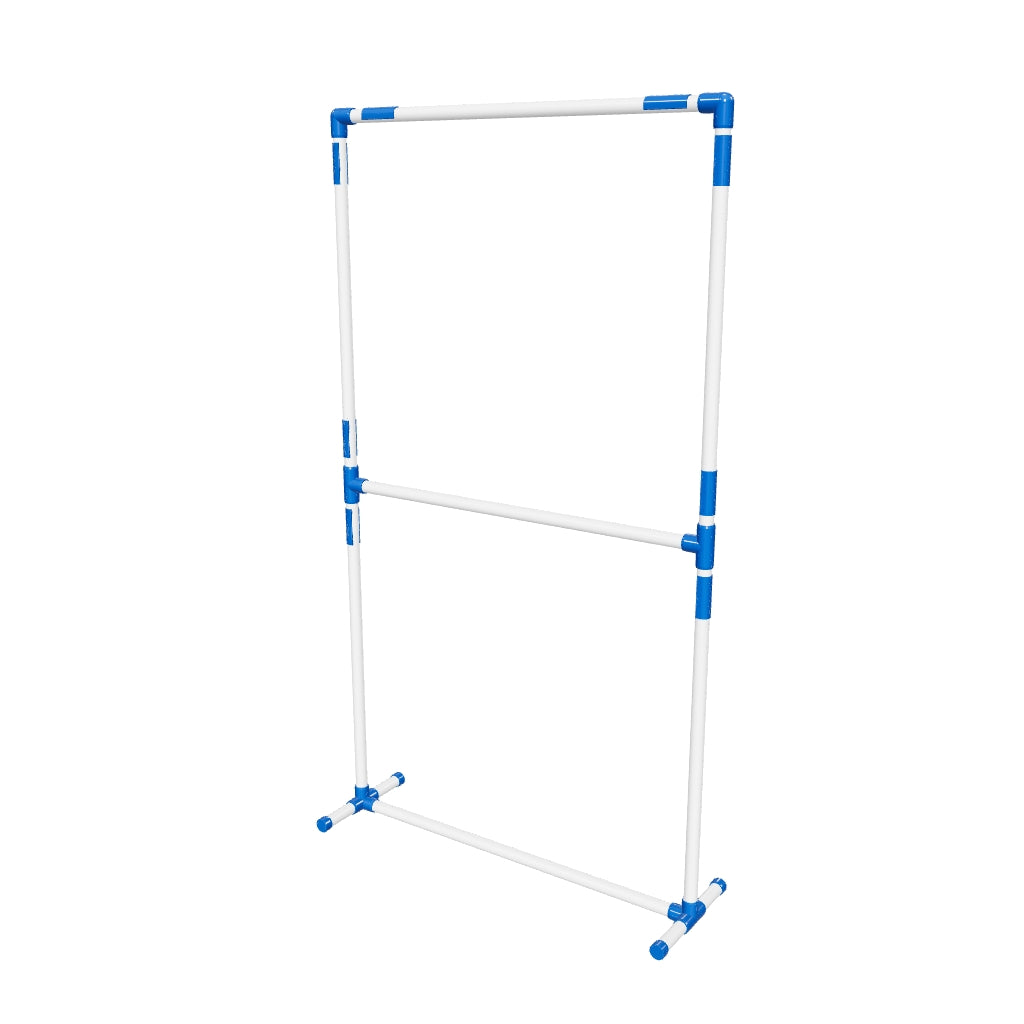

PVC Basic Safety Partition

pvc basic partition

Materials List

PART DESCRIPTION  QTY.
F0014WT 1 in. 4-Way PVC Tee 2
F001TEE 1 in. Standard PVC Tee 2
F00190E 1 in. 90 Degree PVC Elbow 2
F001EEC 1 in. External PVC Cap 4
P001CLP-4 1 in. PipeClamp (4" Length) 12
Pipe Needed 1 in. Sch 40 PVC Pipe 30 ft.

PVC Project Plan Description

Build a Basic PVC Safety Partition for your office, school or organization. This partition is very basic and is designed to separate areas of close contact between people and provide your customers, students or employees a safe and comfortable space to sit or work.

Project Specifications:

  • Easy to build with quick turnaround time
  • Ideal for static separation areas where movement is limited
  • PipeClamp use allows easy removal of poly sheeting or other material for cleaning or replacement
  • Overall Dimensions (as built): 75”H x 42”W x 14”D

Download this PVC Plan

Download a step-by-step PDF file of this PVC plan to your computer or device.


Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
