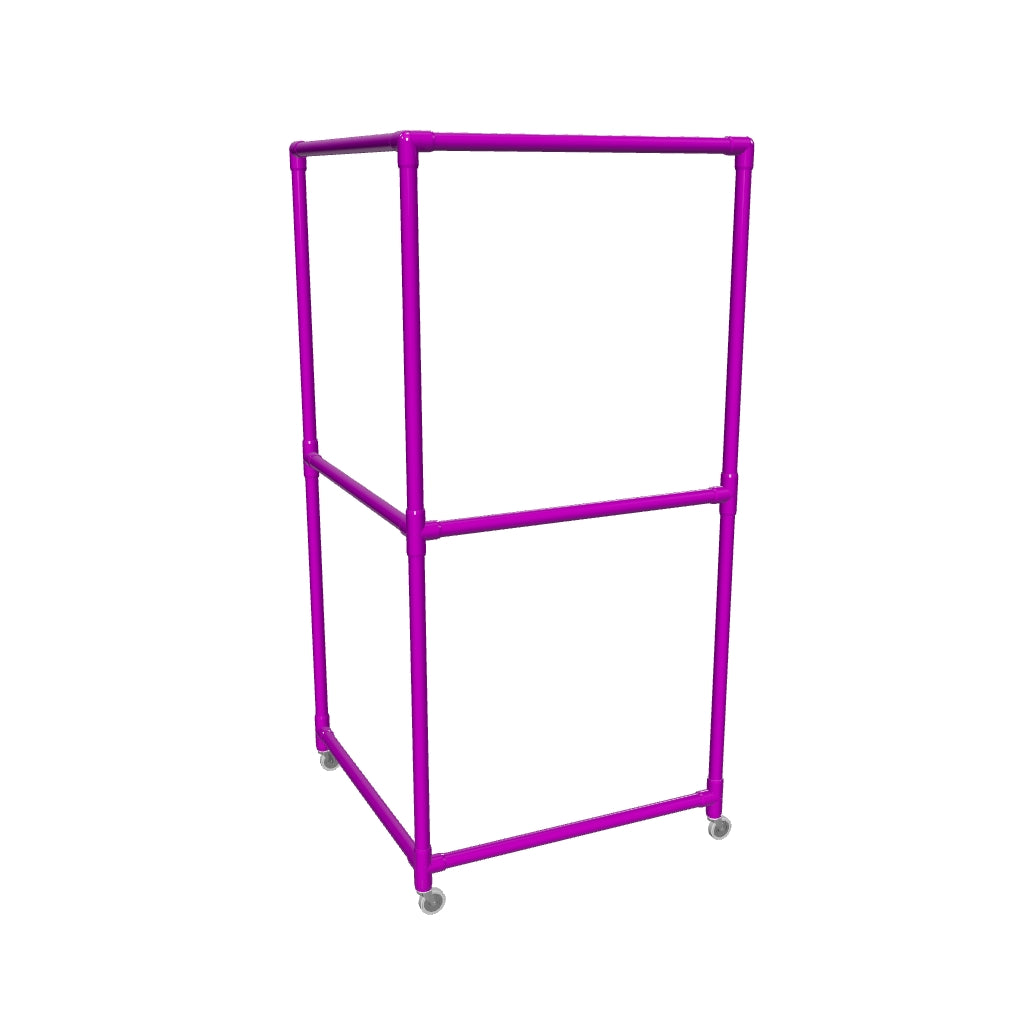

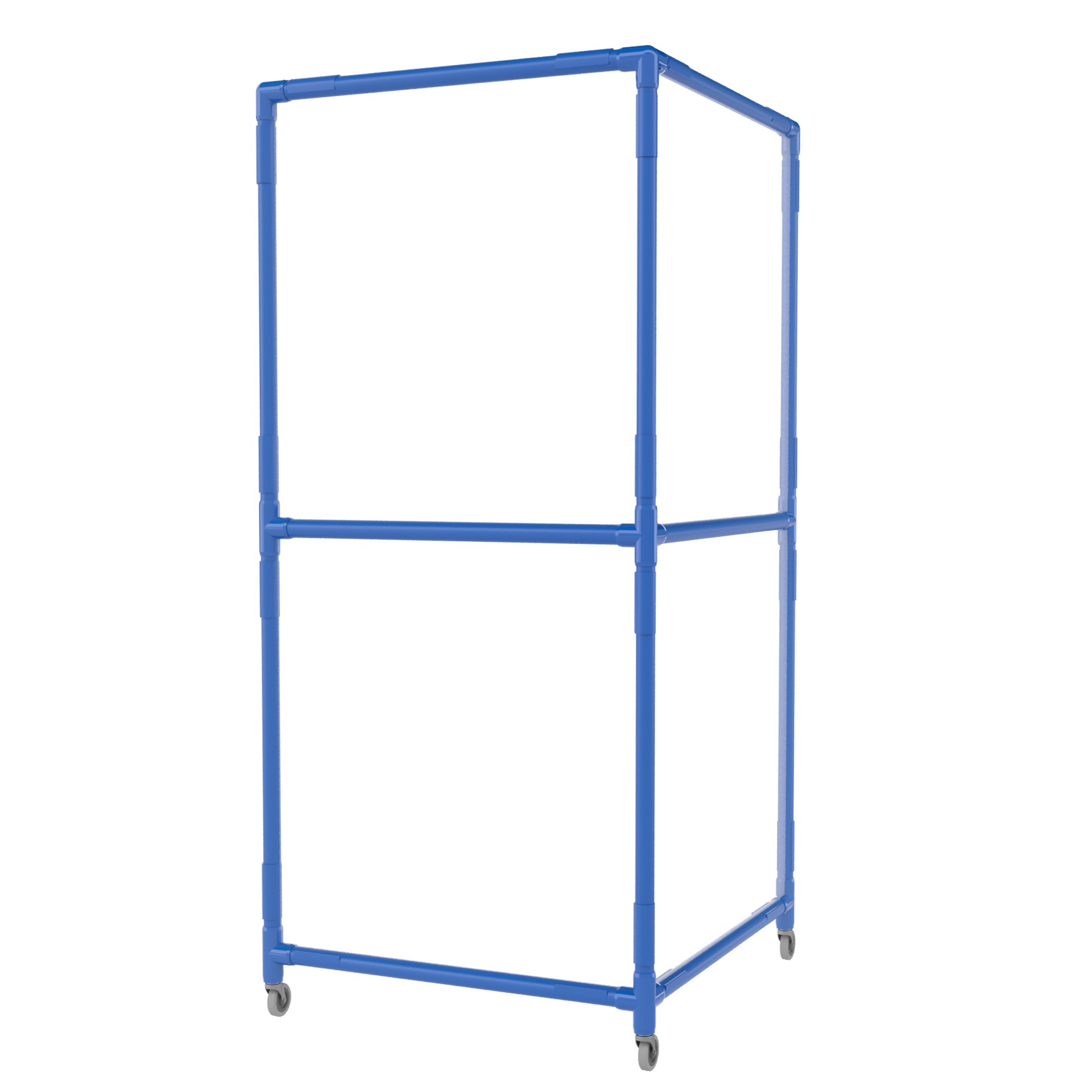

PVC Plan Materials List
PART | DESCRIPTION | QTY. |
---|---|---|
F1143WE | 1-1/4" 3-Way PVC Elbow | 1 |
F1144WT | 1-1/4" 4-Way PVC Tee | 2 |
F114TEE | 1-1/4 in. Standard PVC Tee | 4 |
F11490E | 1 in. 90 Degree PVC Elbow | 2 |
F114CF7 | 1-1/4 in. Caster Fitting Insert | 3 |
F114CLP | 1-1/4 in. PipeClamp (4" Length) | 20 |
C002BRK | Caster with Brake | 3 |
Pipe Needed | 1 in. Sch 40 PVC Pipe | 40 ft. |
PVC Plan Downloads

Mobile PVC Safety Partition Plan PDF File
Download the FORMUFIT step-by-step Mobile PVC Safety Partition Plan in Adobe PDF format to your computer or device for free.

Mobile PVC Safety Partition Plan SketchUp File
Download the FORMUFIT Mobile PVC Safety Partition Plan SketchUp File to your computer or device to modify or customize the design.
