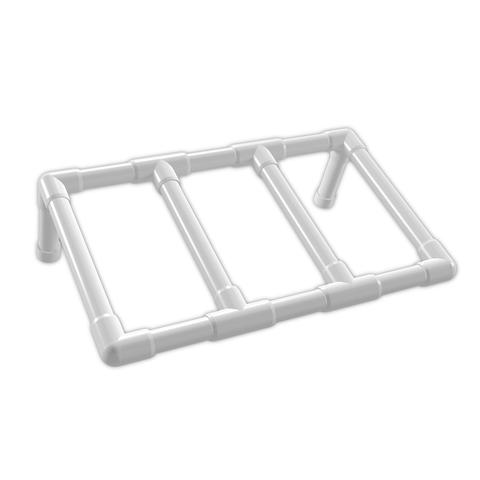

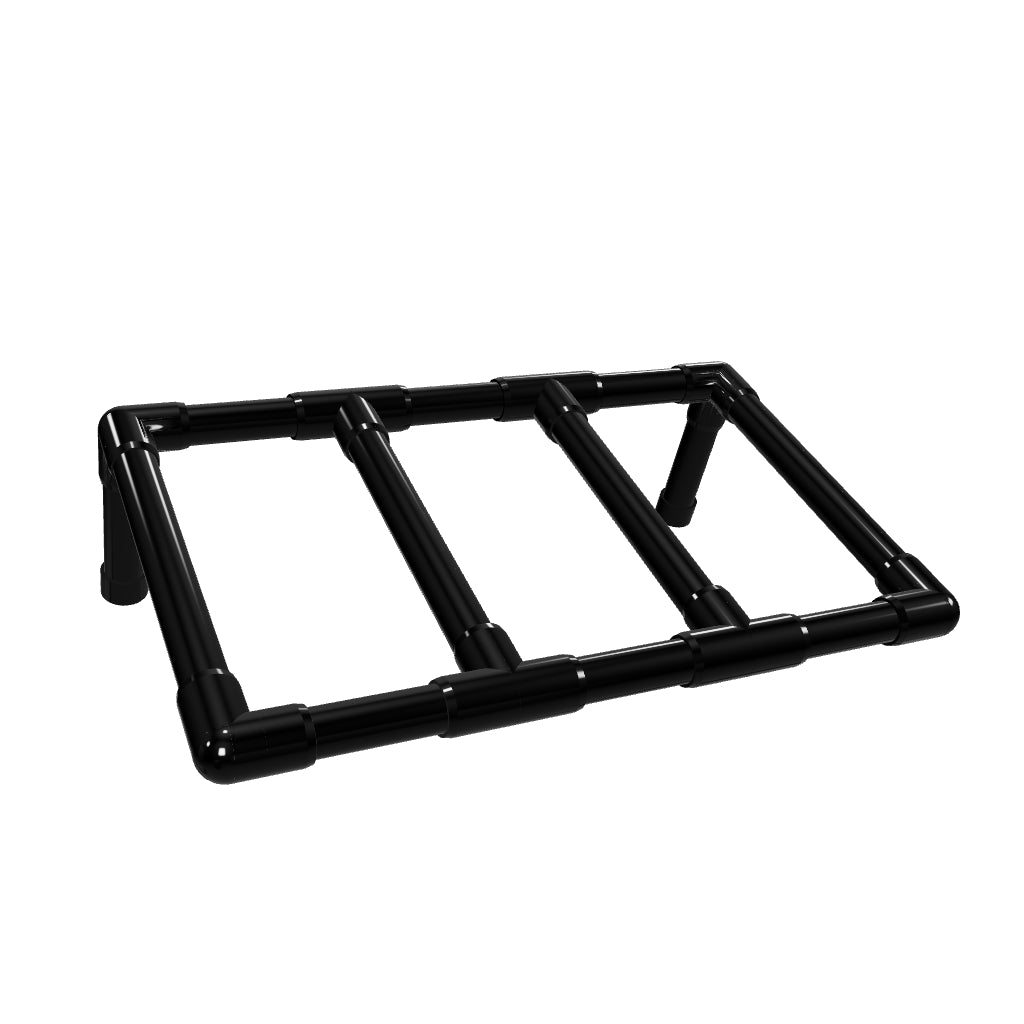

PVC Foot Rest Plan
Load image into Gallery viewer, PVC Foot Rest Plan
Load 3D model into Gallery viewer, PVC Foot Rest Plan

PVC Foot Rest Plan

FORMUFIT
Free Download

Scroll Down for a full materials list and plan downloads.

The PVC Foot Rest is an easy and inexpensive way to achieve proper foot positioning beneath a desk or office table. Perfect for those with ankle, foot, or lower back problems.

  • Small form factor, perfect for the business or home office.
  • Creates an ergonomic sitting position, ideal for individuals with angle, leg or lower back problems.
  • Adjustable angles by using different PVC sizes.
  • Strong and safe.
Difficulty

Difficulty

Build Time

Build Time

Build Cost

Build Cost

What's Needed

PVC Plan Materials List

PART DESCRIPTION QTY.
F001TEE 1" PVC Tee 6
F0013WE 1" 3-Way PVC Elbow 2
F00190E 1" 90 Deg. PVC Elbow 2
F001EEC 1" External End Cap 2
Pipe Needed 1" Sch 40 PVC Pipe 8 ft.

PVC Plan Downloads

PVC Foot Rest Plan PDF File

PVC Foot Rest Plan PDF File

Download the FORMUFIT step-by-step PVC Foot Rest Plan in Adobe PDF format to your computer or device for free.

Download PDF
PVC Foot Rest Plan SketchUp File

PVC Foot Rest Plan SketchUp File

Download the FORMUFIT PVC Foot Rest Plan SketchUp File to your computer or device to modify or customize the design.

Download SKP
