PVC Antenna Mount

PVC Antennae Mount

Materials List

F001ECT 1 in. PVC Table Cap 3
F00190E 1 in. 90 Deg. Elbow 3
F001CRX 1 in. PVC Cross 1
Pipe Required 1 in. Sch 40 PVC Pipe 5 ft.

PVC Project Plan Description

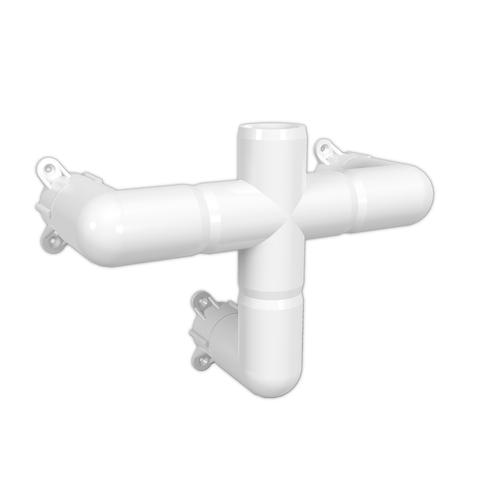

The 3-Point Antenna Mount can be used to mount a 1" PVC mast for amateur radio, HD antennas or cell signal receivers.

Project Specifications:

  • Ideal for amateur radio or other radio and antennea operations.
  • Can accept standard 1" PVC pipe for mast mount.
  • Attractive, durable and extremely weather proof.
  • 3-Point Connection provides secure attachment to most flat surfaces.

Download this PVC Plan

Download a step-by-step PDF file of this PVC plan to your computer or device.

Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
