PVC Spray Paint Booth

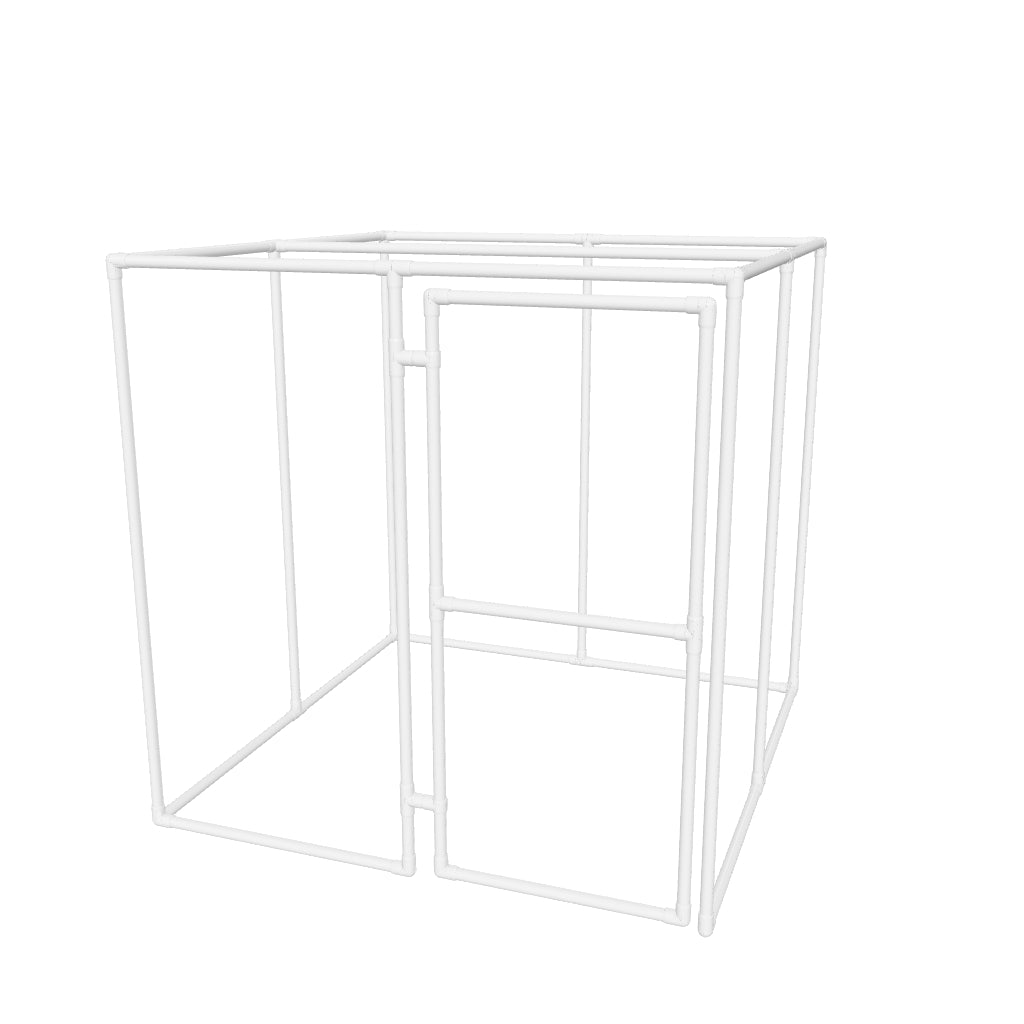

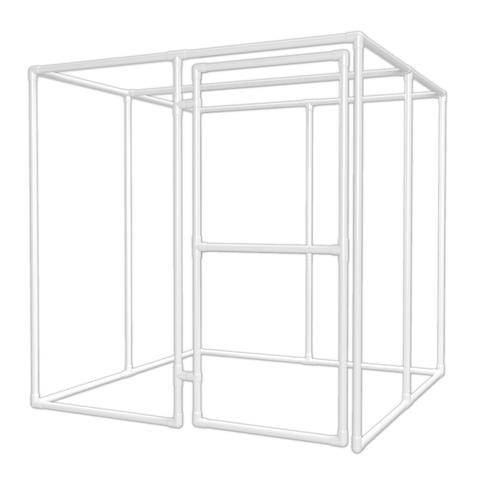

PVC Spray Paint Booth Plan

Materials List

F114TEE 1-1/4 in. PVC Tee 9
F11490E 1-1/4 in. 90 Deg. PVC Elbow 9
F1143WE 1-1/4 in. 3-Way PVC Elbow 7
F1144WT 1-1/4 in. 4-Way PVC Tee 2
F114STE 1-1/4 in. Slip Sling PVC Tee 2
Pipe Required 1-1/4 in. Sch 40 PVC Pipe 140 ft.

PVC Project Plan Description

This Paint/Spray Booth is light, durable and easy to assemble and use. Intructions are included on how to apply plastic sheeting to the frame.

Project Specifications:

  • 7'H x 7'W x 7'D High, ideal for auto body or motorcycle parts.
  • Fully hinged door.
  • Can be tailored for garage or outdoor use.
  • Includes measurements and instructions for plastic covering and adhesion.

Download this PVC Plan

Download a step-by-step PDF file of this PVC plan to your computer or device.

Download SketchUp File

Download the SketchUp 3D file of this project to your PC or Mac to modify or adjust the design.
