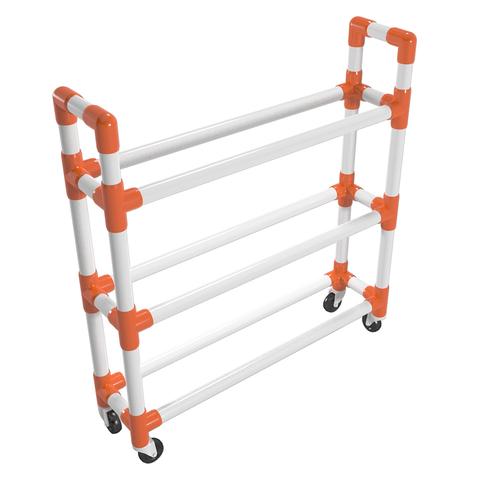

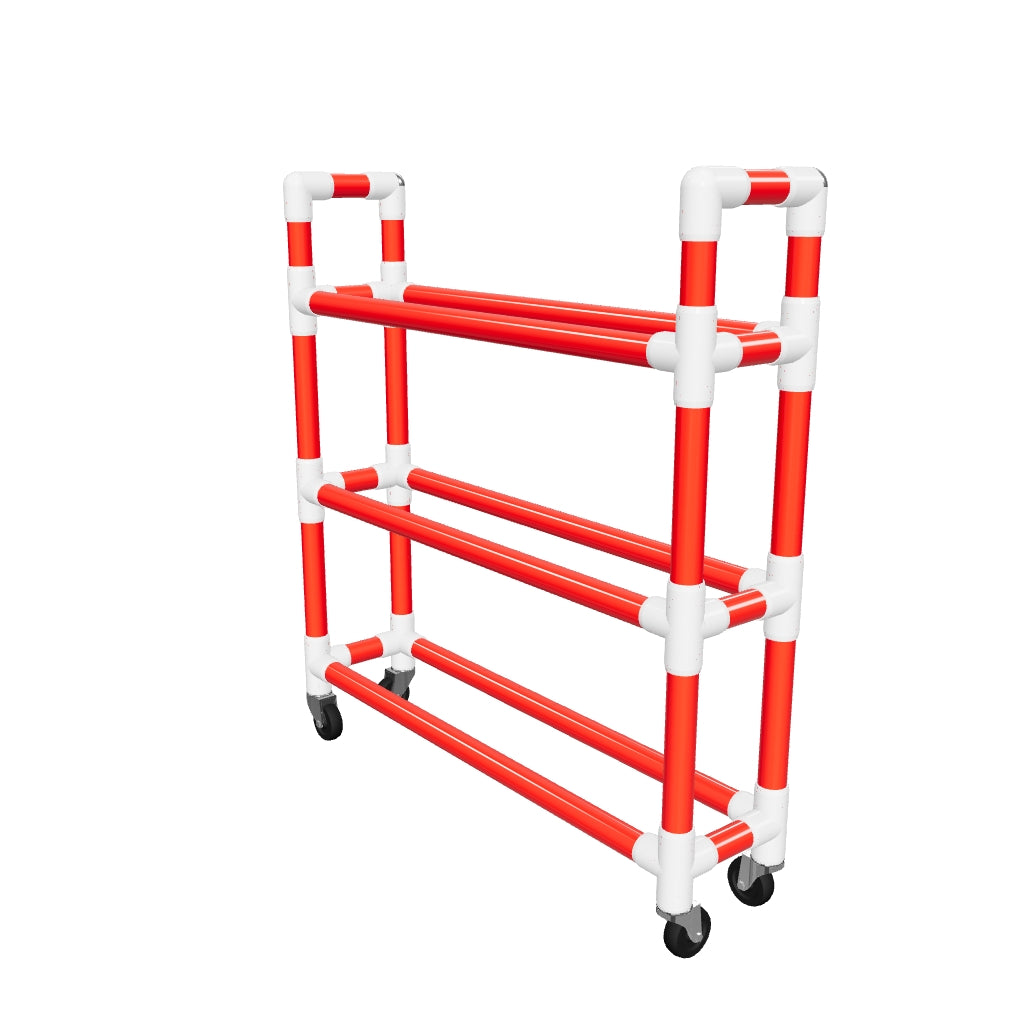

PVC Athletic Ball Storage Cart Plan
Load image into Gallery viewer, PVC Athletic Ball Storage Cart Plan
Load 3D model into Gallery viewer, PVC Athletic Ball Storage Cart Plan

PVC Athletic Ball Storage Cart Plan

FORMUFIT
Free Download

Scroll Down for a full materials list and plan downloads.

The Athletic Ball Storage Rack is an ideal solution for storing basketballs, soccer balls, and other athletic equipment in a neat, organized and transportable manner.

  • Securely stores basketballs, Soccer Balls and Volleyballs
  • Holds approximately twelve (12) standard athletic balls
  • Rolls using Caster Fitting Insert and casters you provide
  • Handle/Grips on each end for easy transport and positioning
  • Durable and weatherproof
  • Plan Build Dimensions: 42 in. H x 40 in. W x 10 in. D
Difficulty

Difficulty

Build Time

Build Time

Build Cost

Build Cost

What's Needed

PVC Plan Materials List

PART DESCRIPTION QTY.
F1144WT 1-1/4" 4-Way Tee 12
F11490E 1-1/4" 90 Degree Elbow 4
F114CF7 1-1/4" Caster Fitting Insert 4
Pipe Needed 1-1/4" Sch 40 PVC Pipe 35 ft.

PVC Plan Downloads

PVC Athletic Ball Storage Cart Plan PDF File

PVC Athletic Ball Storage Cart Plan PDF File

Download the FORMUFIT step-by-step PVC Athletic Ball Storage Cart Plan in Adobe PDF format to your computer or device for free.

Download PDF
PVC Athletic Ball Storage Cart Plan SketchUp File

PVC Athletic Ball Storage Cart Plan SketchUp File

Download the FORMUFIT PVC Athletic Ball Storage Cart Plan SketchUp File to your computer or device to modify or customize the design.

Download SKP
