PVC Antenna Mount Plan
Load image into Gallery viewer, PVC Antenna Mount Plan
Load 3D model into Gallery viewer, PVC Antenna Mount Plan

PVC Antenna Mount Plan

FORMUFIT
Free Download

Scroll Down for a full materials list and plan downloads.

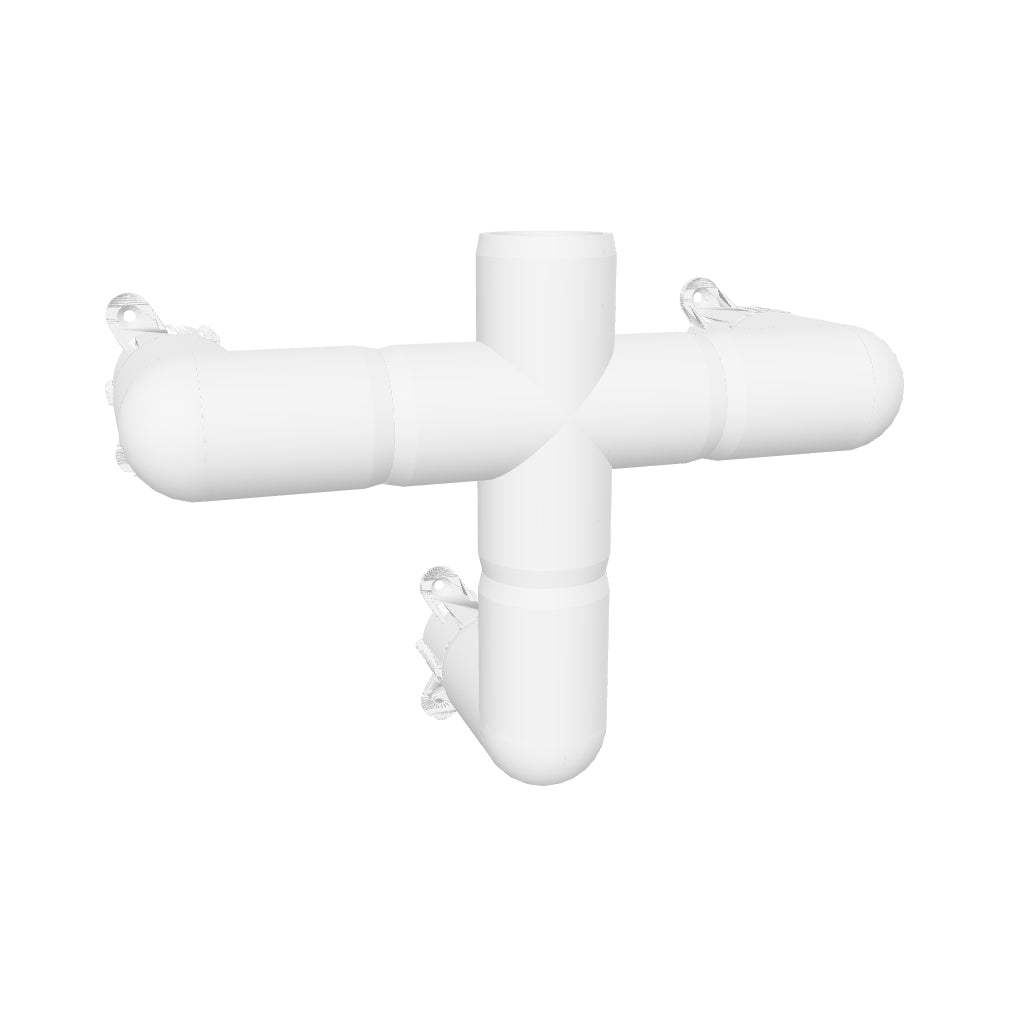

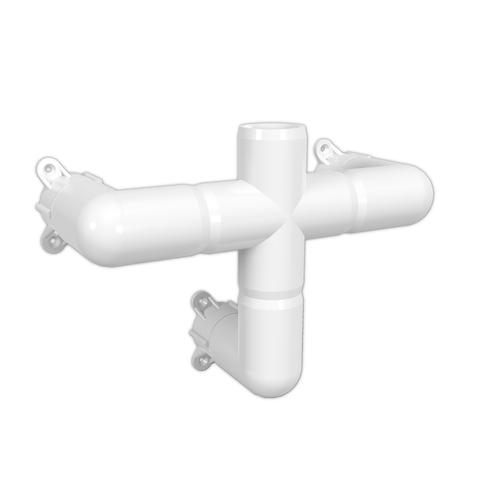

You can build this 3-point Antenna Mount to mount a 1" PVC pipe mast for amateur radio, HD antennas, or cell signal receivers. Securely mount to siding or walls and use a telescoping PVC pipe configuration to add height to your antennae.

  • Ideal for amateur radio or other radio and antenna operations.
  • Can accept standard 1" PVC pipe for mast mount.
  • Attractive, durable, and highly weather proof.
  • 3-Point Connection provides secure attachment to most flat surfaces.
Difficulty

Difficulty

Build Time

Build Time

Build Cost

Build Cost

What's Needed

PVC Plan Materials List

PART DESCRIPTION QTY.
F001ECT 1" PVC Table Cap 3
F00190E 1" 90 Deg. Elbow 3
F001CRX 1" PVC Cross 1
Pipe Needed 1" Sch 40 PVC Pipe 5 ft.

PVC Plan Downloads

PVC Antenna Mount Plan PDF File

PVC Antenna Mount Plan PDF File

Download the FORMUFIT step-by-step PVC Antenna Mount Plan in Adobe PDF format to your computer or device for free.

Download PDF
PVC Antenna Mount Plan SketchUp File

PVC Antenna Mount Plan SketchUp File

Download the FORMUFIT PVC Antenna Mount Plan SketchUp File to your computer or device to modify or customize the design.

Download SKP
