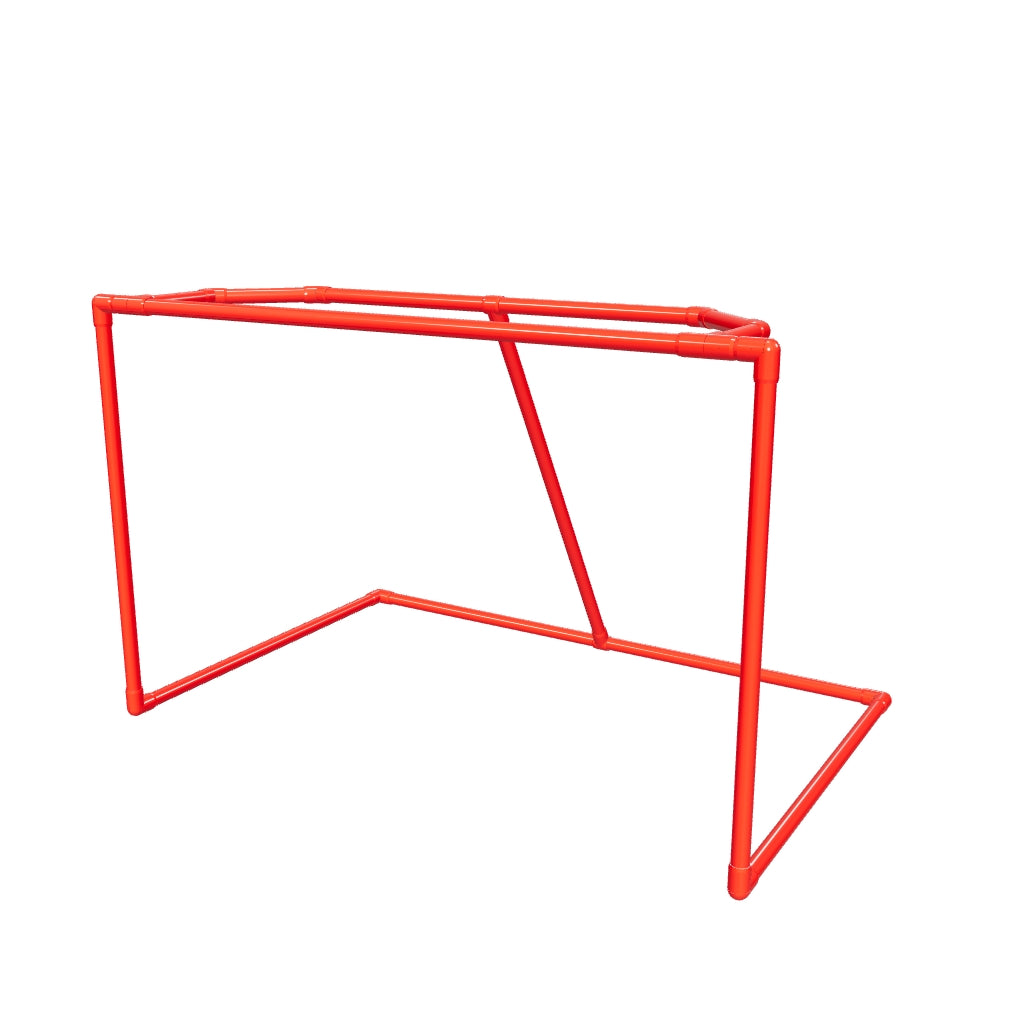

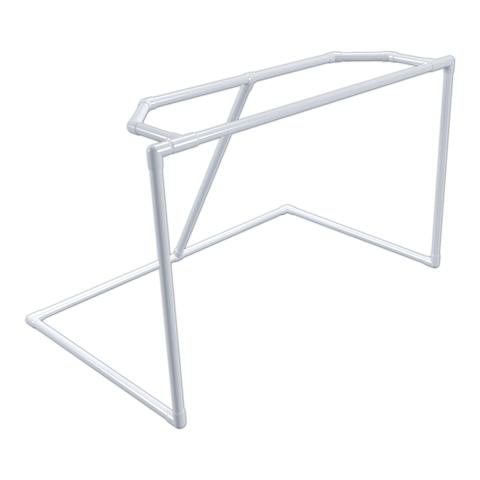

PVC Hockey Goal Frame Plan
Load image into Gallery viewer, PVC Hockey Goal Frame Plan
Load 3D model into Gallery viewer, PVC Hockey Goal Frame Plan

PVC Hockey Goal Frame Plan

FORMUFIT
Free Download

Scroll Down for a full materials list and plan downloads.

Gear up for tons of exciting games with the FORMUFIT Regulation Hockey Goal PVC Frame Plan. This goal is perfect for street or ice hockey use and lets you hone your skills. It meets all regulatory requirements for the standard-size hockey goal and is simple to build.

  • Meets NHL Rules and Regulations for hockey Goal Posts and Nets.
  • 6' between posts, end-to-end
  • 4' high, base to top
  • 4' rear to front (@ base)
  • 18" rear to front (@ top)
Difficulty

Difficulty

Build Time

Build Time

Build Cost

Build Cost

What's Needed

PVC Plan Materials List

PART DESCRIPTION QTY.
F11490E 1-1/4" 90 Deg. PVC Elbow 6
F11445E 1-1/4" 45 Deg. PVC Elbow 4
F114TEE 1-1/4" PVC Tee 2
F114STE 1-1/4" Slip Sling PVC Tee 2
Pipe Required 1-1/4" Sch 40 PVC Pipe 40 ft.

PVC Plan Downloads

PVC Hockey Goal Frame Plan PDF File

PVC Hockey Goal Frame Plan PDF File

Download the FORMUFIT step-by-step PVC Hockey Goal Frame Plan in Adobe PDF format to your computer or device for free.

Download PDF
PVC Hockey Goal Frame Plan SketchUp File

PVC Hockey Goal Frame Plan SketchUp File

Download the FORMUFIT PVC Hockey Goal Frame Plan SketchUp File to your computer or device to modify or customize the design.

Download SKP
